Rogue Audio RP-5 v2 Tube Preamplifier

Description

The RP-5 v2 uses four 12AU7 tubes in a mu follower line stage and adds a phono stage with four gain settings from 43 to 65 dB, enough for most moving magnet and moving coil cartridges. It borrows its headphone circuit from the RH-5. The v2 revision added an OLED display and an optical rotary encoder for volume in 0.5 dB steps.

Highlights

• Four tube 12AU7 mu follower line stage with 11 dB gain
• Phono stage with 43, 48, 57 or 65 dB gain and user adjustable loading
• Tube based headphone amplifier derived from the RH-5

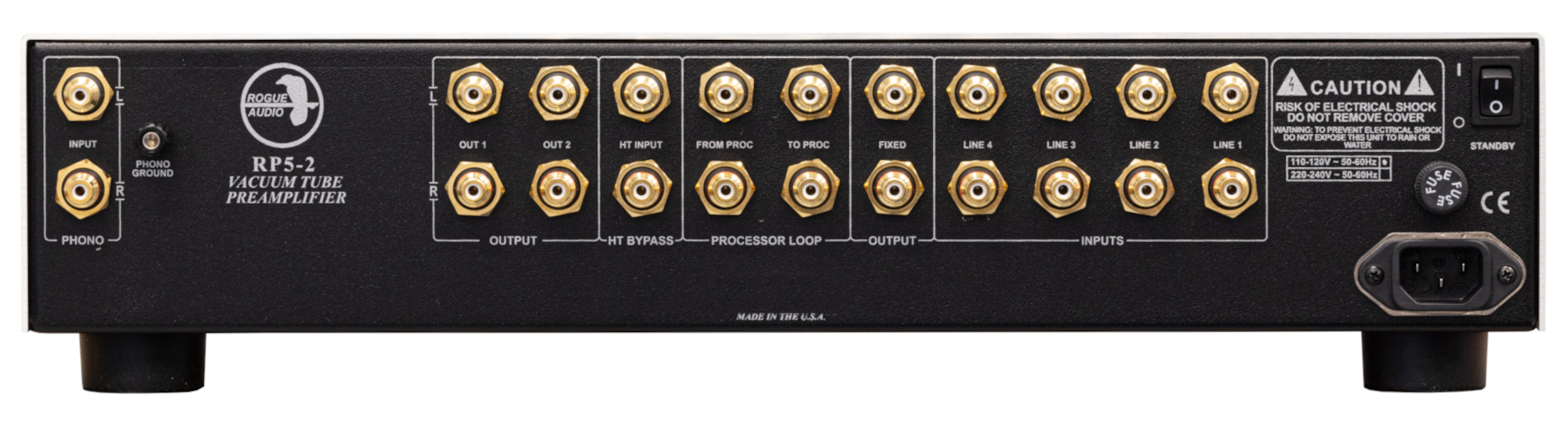

• Five RCA inputs (four line plus phono, or five line), home theater bypass and processor loop
• Two variable outputs and one fixed output

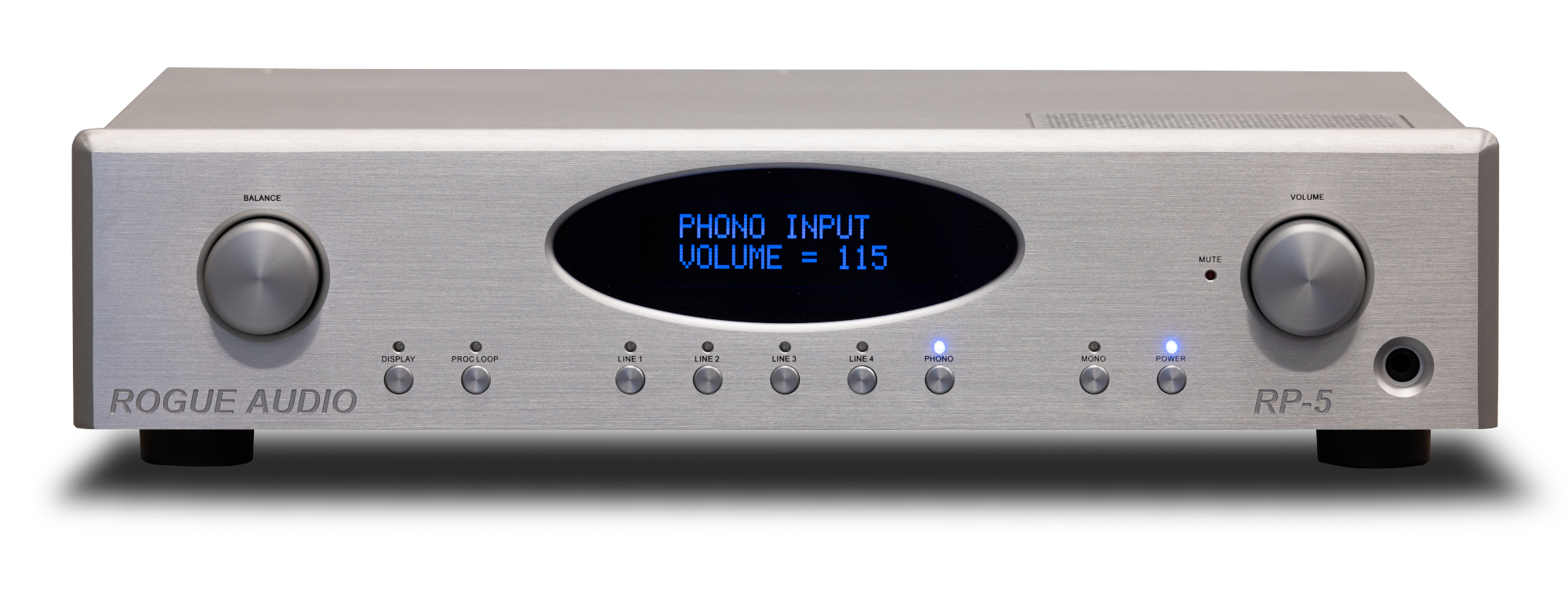

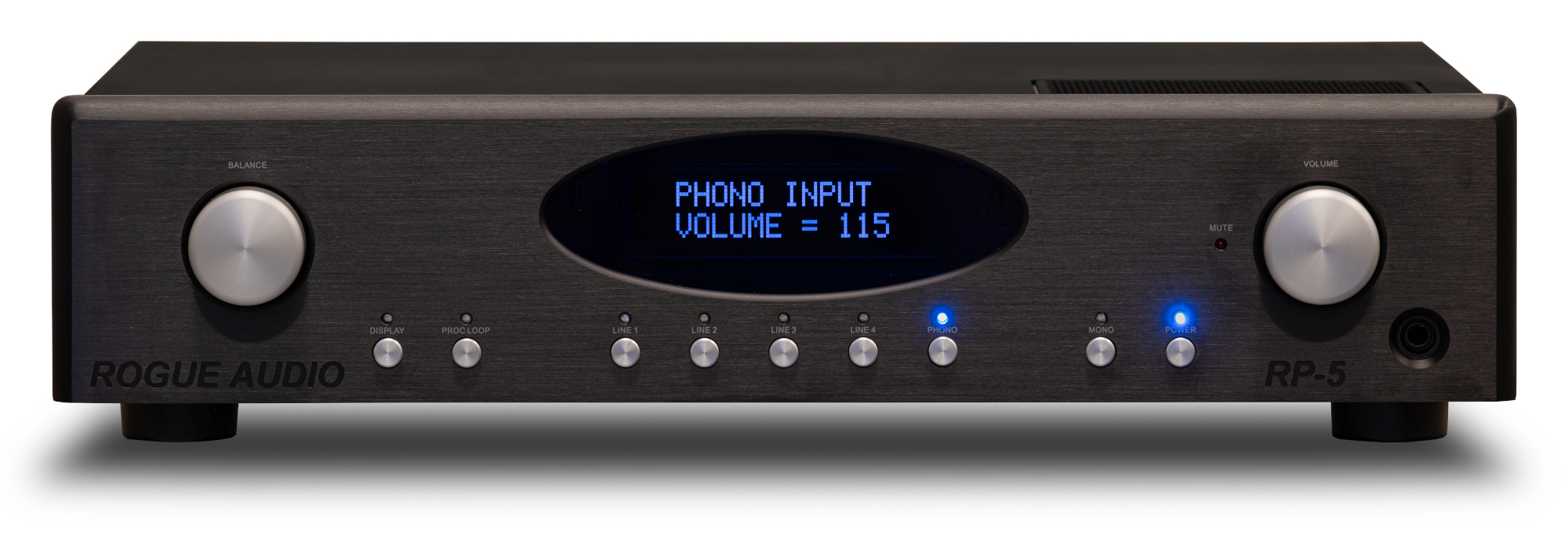

• Defeatable OLED display and 0.5 dB volume steps via optical encoder
• Ten function remote with mono and balance control
