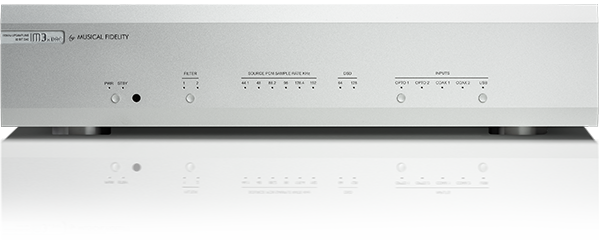

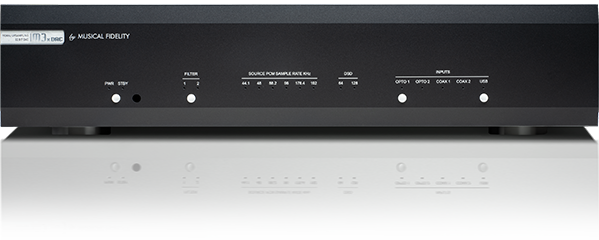

Musical Fidelity M3x DAC
$1,799.00
An upsampling DAC built on the PCM1795 with USB, coaxial, and optical inputs and both RCA and balanced XLR outputs.
In stock in our Cornwall showroom. Free shipping in the US, or pick up in our Cornwall store.
Description
The M3x DAC uses a Texas Instruments PCM1795 converter with an SRC4392 sample rate converter that reclocks PCM signals and upsamples them to 192 kHz. The USB input handles PCM up to 32 bit/192 kHz and DSD256, while DSD is passed without upsampling. Separate output buffers feed the RCA and balanced XLR outputs.
Highlights
- PCM1795 DAC with SRC4392 upsampling and reclocking to 192 kHz
- USB input for PCM up to 32 bit/192 kHz and DSD256, native or DoP
- Two coaxial and two optical inputs up to 24 bit/192 kHz

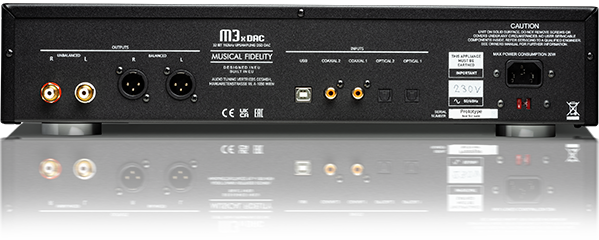

- RCA output at 2 V and balanced XLR output at 4 V with separate buffers
- Two PCM digital filters and two analog DSD filters
- Low noise toroidal transformer with EMI filtering and DC blocking in a steel and aluminum chassis
Additional information
| Weight | 15.0 lbs |
|---|---|
| Dimensions | 14.3 × 17.3 × 3.9 in |
| Finish | Black, Silver |
