Description

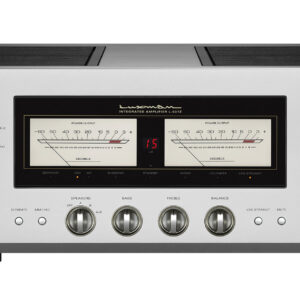

The L-509Z is the top model in Luxman’s Z series, built like a separate preamp and power amp sharing one chassis. LIFES 1.0 feedback is used in both the preamp and power sections, and a quadruple paralleled Darlington output stage runs from a 600 VA transformer. Three band tone controls, dual pre outs and two switchable speaker outputs make it a flexible center for a high end two channel system.
Highlights
- 120 watts per channel into 8 ohms, 220 watts per channel into 4 ohms
- LIFES 1.0 feedback with a bipolar four parallel push pull output stage and a damping factor of 330
- LECUA EX electronic volume control with 88 steps
- Built in phono stage for MM and MC cartridges, with high and low MC gain settings
- Bass, middle and treble tone controls plus line straight, loudness and balance
- Two pre outs and A/B speaker outputs for bi wiring
- Headphone outputs on a 6.3 mm jack and a 4.4 mm balanced jack
